Robotic machining cells 6-axis with KUKA robot

Applications

The 6-axis robotic CNC Machining Cells (ref: CN1x) are industrial systems for machining, drilling, cutting and finish with 6-axis Kuka robots.

Robotic machining cell with 6 axes robot KUKA

THE DIFFERENT FEATURES

The KUKA Robot acts like a large-sized machine tool, with high accuracy combined with high movement speed

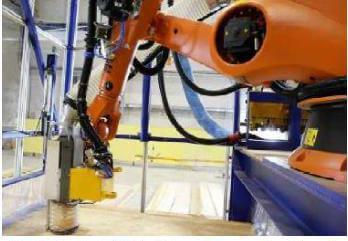

miniature

INDUSTRIAL APPLICATION


SANDING

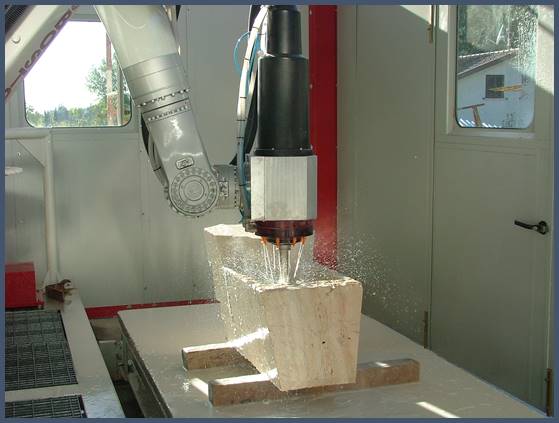

An example of industrial application : sculpture

INDUSTRIAL APPLICATION


SCULPTURE

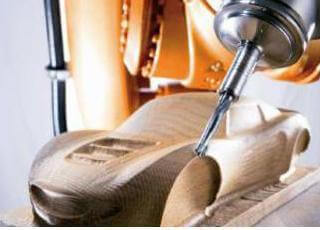

miniatureVoiture

INDUSTRIAL APPLICATION


MODELING

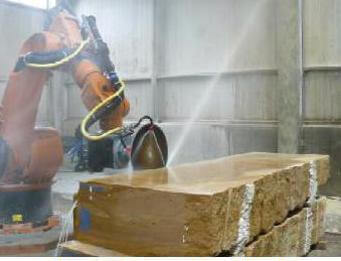

miniatureDecoupe

INDUSTRIAL APPLICATION


SAWING

KUKA photo credit

Why machining with a 6-axis robot?

6-axis robots are increasingly used in aeronautics and  production sector (metals, modeling, wood, stone, etc.), as they offer the possibility of working on large-scale parts, with high accuracy and speed, at lower costs than traditional CNC machining centres. Moreover, a simple change of tool allows you to carry out many tasks:

CNC :

  • Drilling, cutting, trimming, finishing
  • Milling, grinding, sanding, polishing
  • Modeling

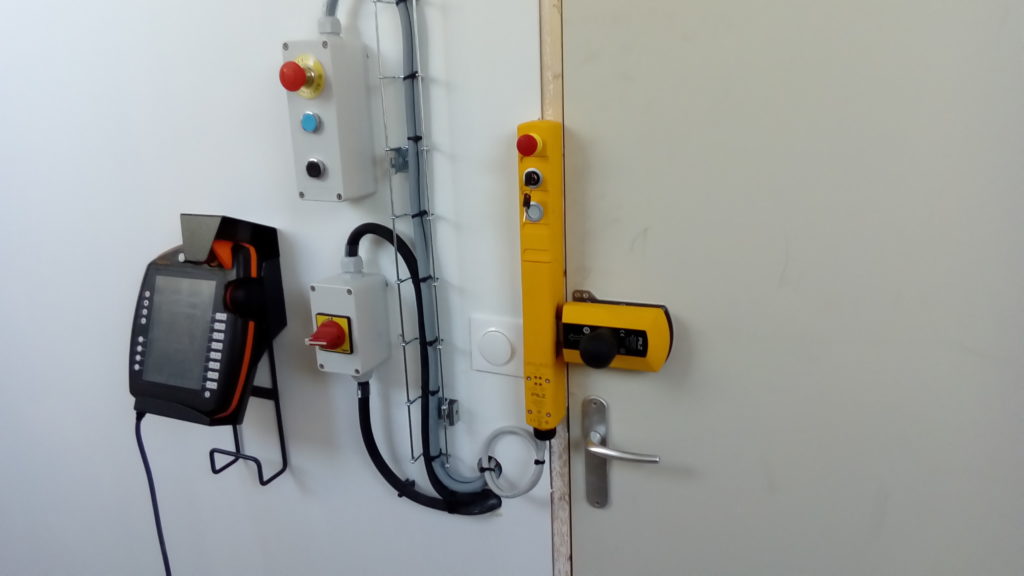

ERM CELLS HARDWARE ENVIRONMENT

The cells are fully secured. To save on costs, robots are equipped with a spindle to work on soft materials (foam, plastics, wood) and/or low hardness (aluminium). Learning how to use the robot is similar whatever the material used.

Centers wishing to work on metals or specific processes (e.g. large wooden parts) can consult us for specific cells with specific robots.

  • Standard cells: 1100 to 2700 mm reach robot, high frequency
  • Spindle power from 800W to 7000W
  • Other custom configurations

Toolholders and tools defined according to applications

ERM cells hardware environment

softwares for erm robotic machining cells

  • Delcam – Powermill Robot Pro
  • Rhinoceros – MadCAM – Rhinorobot



The "ERM + KUKA"benefits :

Performance and durability of KUKA robots (Kuka is the European leader in industrial robotics)

Quality of services (Training, after-sales service, …) offered by KUKA Fran
ce and ERM
Optional: Kuka.CNC, software to program and operate the robot as a NC machine (Reading and ISO code interpolation)
